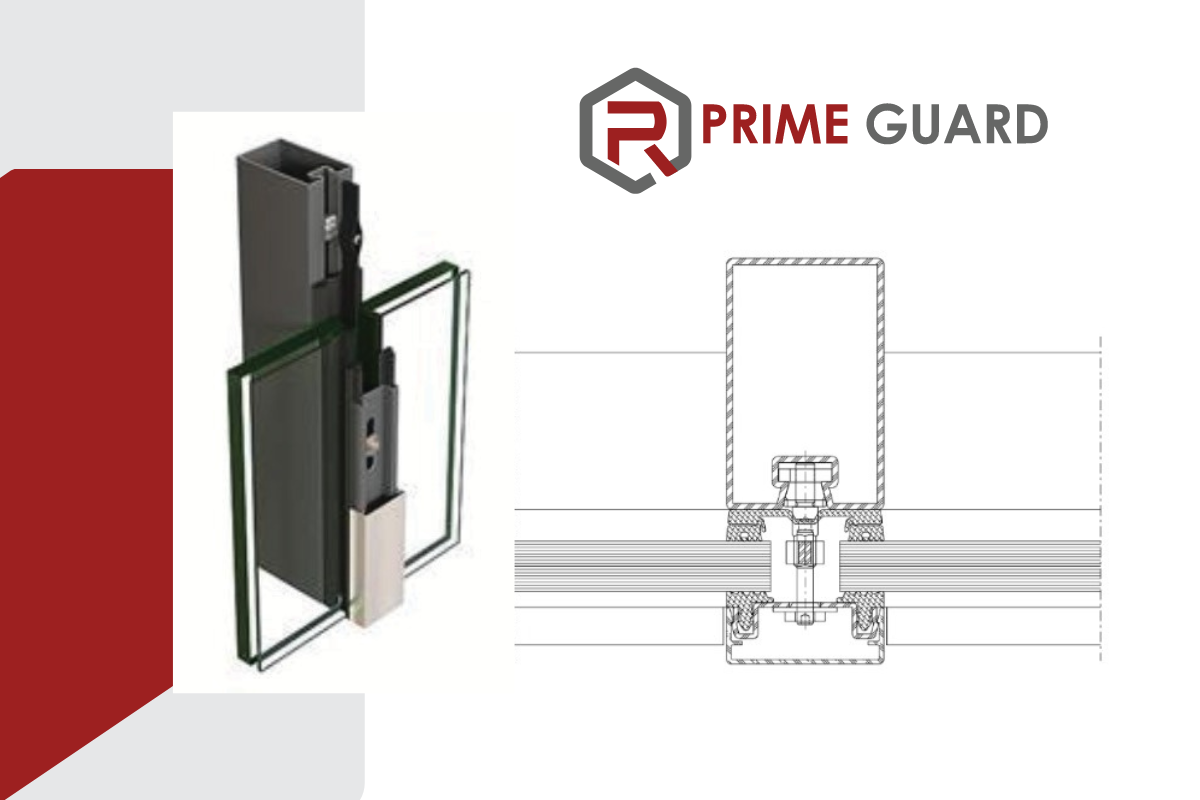

Curtain Wall Systems With Steel Profiles

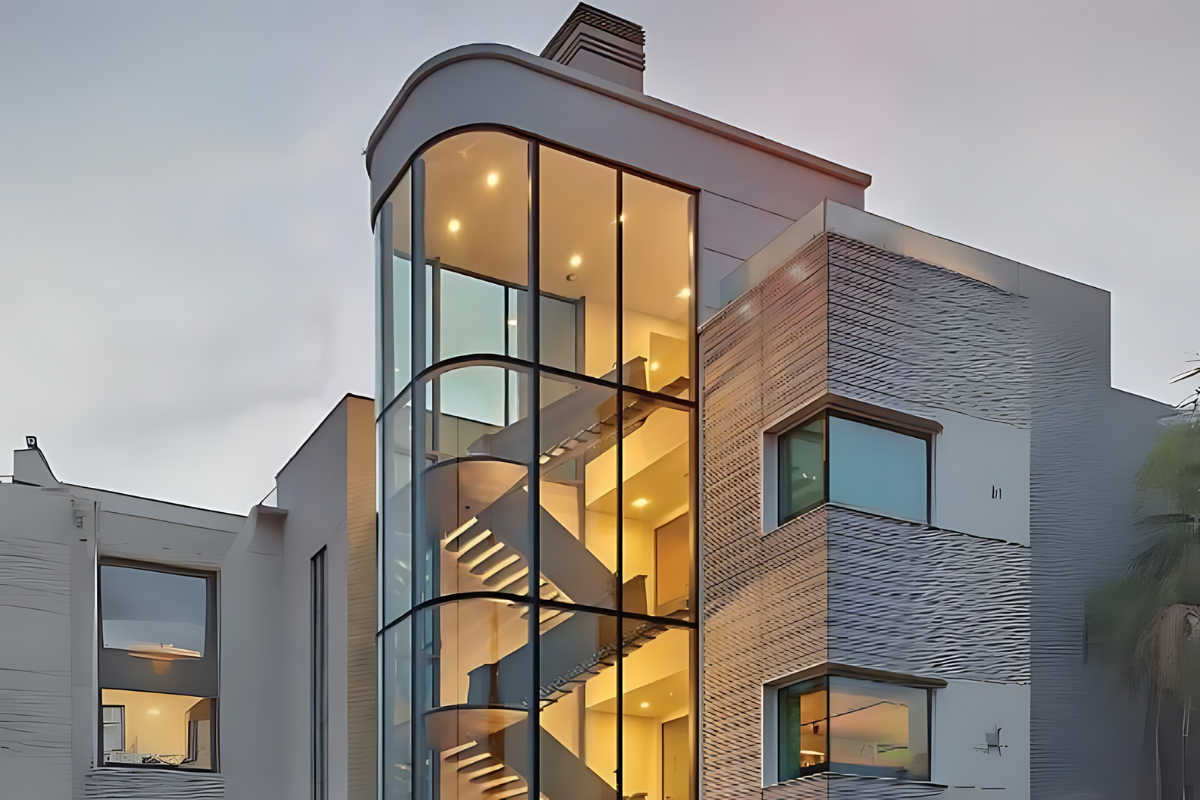

Our system is suitable for vertical façades in all fire resistance classes upto 120 mins for interior and exterior use All classes are also TRAV safety tested. Our Systems can be designed to integrate doors and partition with EW and El class resistance. With a face width of 50 and 60 mm, fire protection requirements can be implemented discreetly and elegantly

Basic depths from 50 to 280 mm provide a whole range of structural solutions for creating storeys of up to 5000 mm in height and of unlimited width. The many alternatives give the developer the necessary freedom to create attractive large areas of glazing.

Specifications


  • Fire Rating-both El & EW systems
  • Up to EW120/E11 20
  • Doors with curtain Walls
  • Face Width 50mm
  • Galvanized steel.
  • Successfully TRAV safety tested (German technical regulations for safety barrier glazing)
  • Face width of 50 and 60 mm
  • Thermal transmittance of Uf > 1.2 W/m2K
  • Basic depths of 50 - 280 mm
  • Infill unit thicknesses of 5 - 70 mm
  • Prefabricated glazing suitable for safety barrier loading in accordance with DIN 18008-4 Category A and C22
