Prime Guard offers glazed systems which can resist fire upto 120 mins in the event of a fire. We offer a complete solution from system providers- Saint Gobain Vetrotech & Aluprof. This system has a fire resistance as per the classification EW and El. These fire rated swing doors and partition can be used for both internal and external application, with Single-Glazed Unit and Double-Glazed Units.

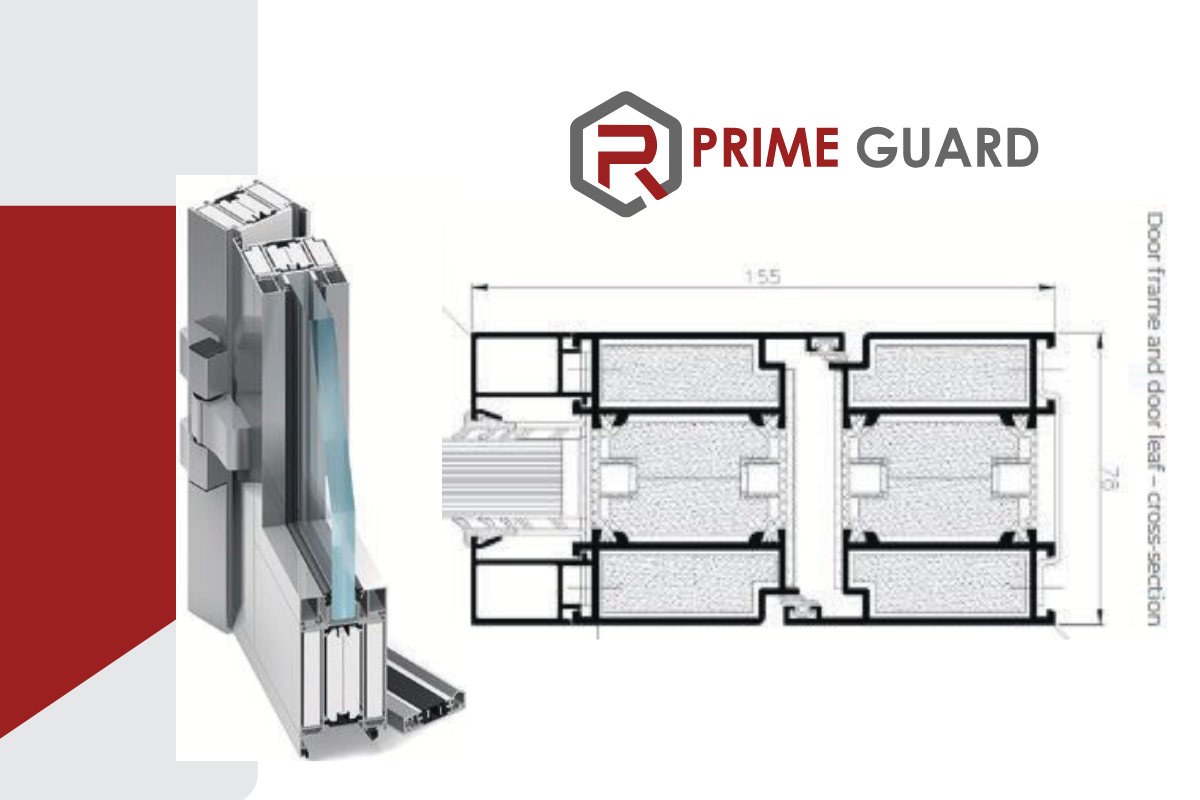

Aluprof MB 78
- Fire Resistance: EW60, EW90, EW120
- EI 60 & EI 90
- EN 1634-1 and 1364-1
- Profile Depth: 78mm
- Depth of Leaf: 78mm
- Glazing Range: 8mm -65mm
- Air Permeability: Class 2, PN-EN 12207:2001
- Water Tightness: Class 5A, PN-EN 12208:2001
- Thermal Insulation: From 1.6 W/m²K
- Acoustic Insulation: Upto 41 dB
- Supports both SGU & DGU for Internal & External
- Finish: Powder Coating & Anodised

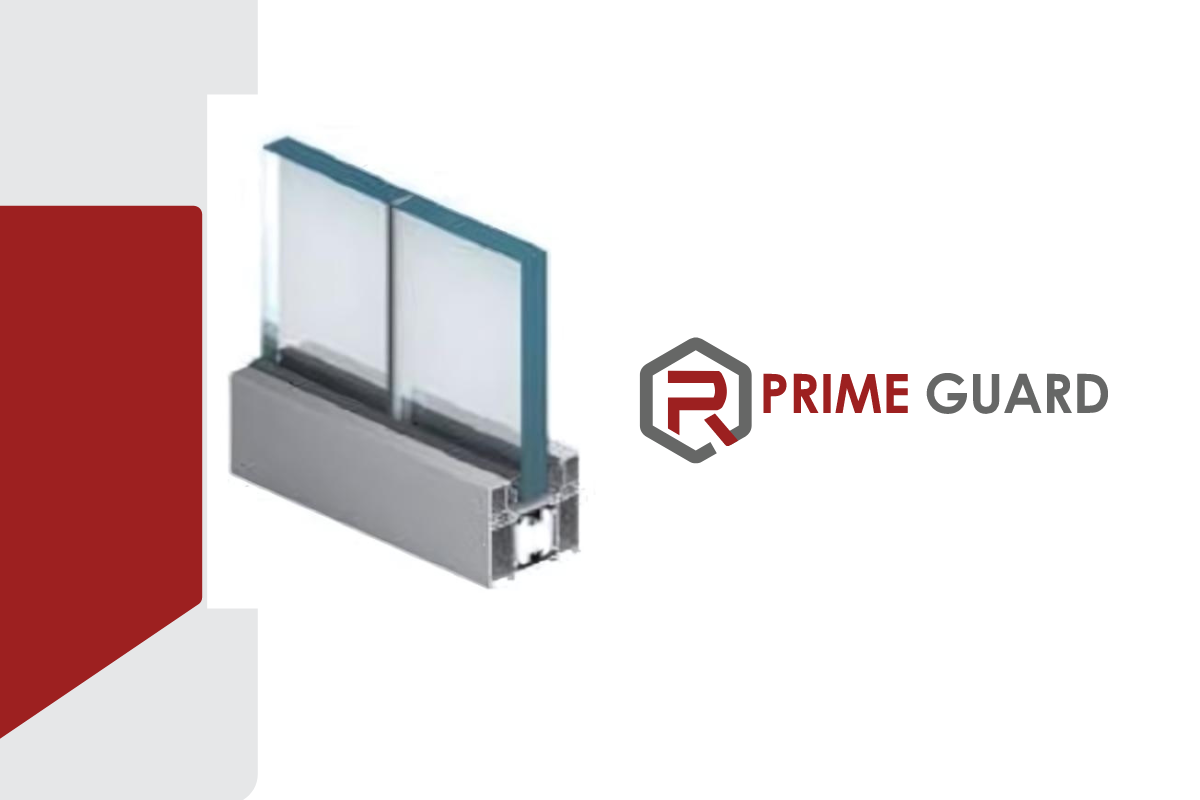

Aluprof MB 78
MB-78El-based silicone joined glazed walls enable to freely design and build very large internal partition walls. With their transparent modules, the constructions made of this system make every room optically bigger. What's more, the system provides security and helps to organize fire zones in the building, whilst ensuring the appropriate conditions for the evacuation of building occupants.
Specifications
- Fire Resistance: E160
- EN 1364-1
- Profile Depth: 78mm
- Depth of Leaf: 78mm
- Glazing Range: 20mm - 70mm
- Thermal Insulation: From 1.6 W/m²K
- Acoustic Insulation: Upto 41 dB
- Supports SGU for Internal
- Finish: Powder Coating & Anodised

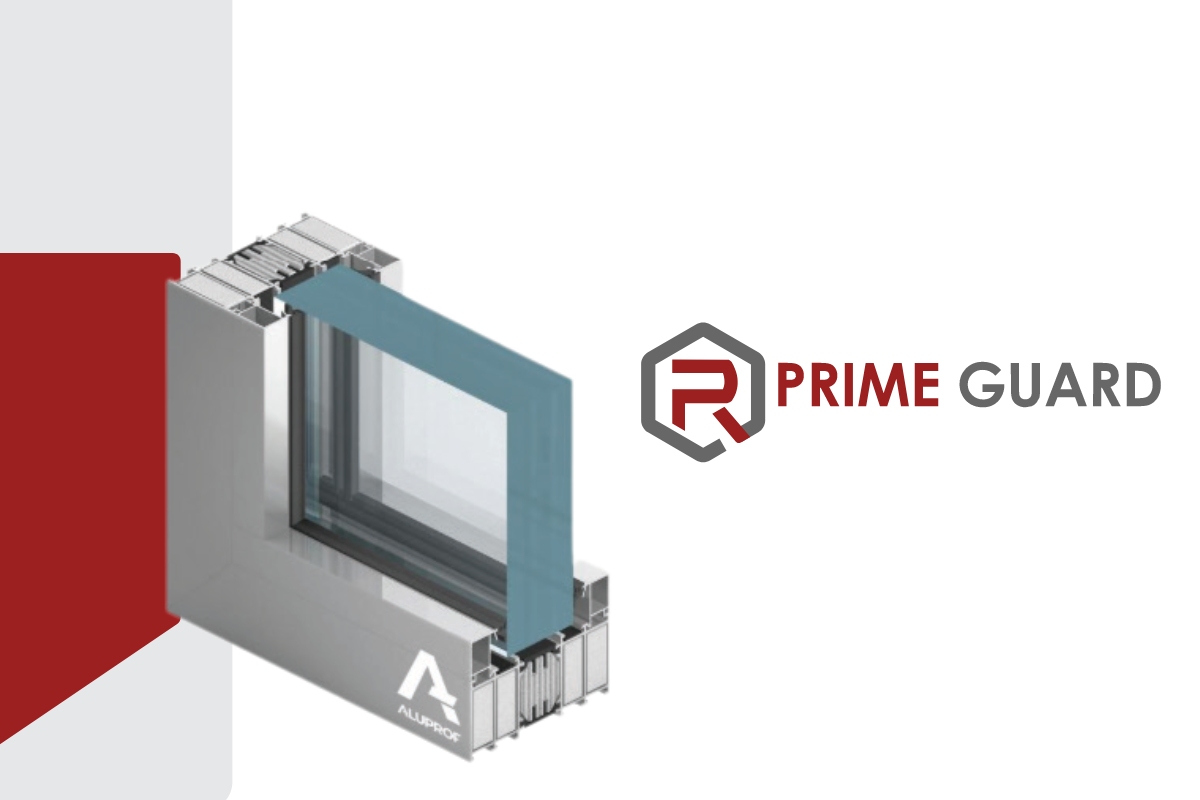

Aluprof MB 118 EI FIX PARTION
The system of fireproof walls MB-118 El is intended for execution of internal or external fireproof partitions of the fire resistance class El120. It is based on the system of fireproof partitions with the door MB-78EI, which provides most components, e.g. glazing beads, cooling inserts, expanding tapes, gaskets and most accessories.
Specifications
- Fire Resistance: El 120
- EN 1364-1
- Profile Depth: 118mm
- Profile Depth: 78mm
- Glazing Range: 8mm - 80mm
- Thermal Insulation: From 1.6 W/m²K
- Acoustic Insulation: Upto 41dB
- Water Tightness: Class 5A, PN-EN 12208:2001
- Thermal Insulation: From 1.6 W/m²K
- Acoustic Insulation: Upto 41 dB
- Supports both SGU & DGU for Internal & External
- Finish: Powder Coating & Anodised
